Refractory Anchors

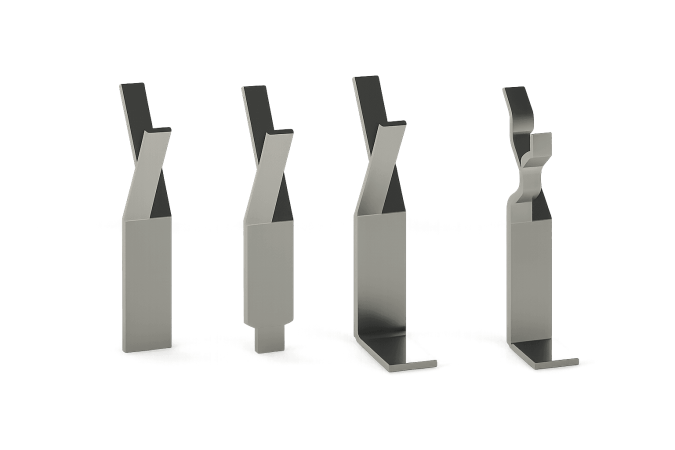

Sheet Metal Anchors
We can manufacture anchors with using AISI 309, AISI 310, AISI 304, Inconel, 253 MA, 16MO3, and other high-alloy CRNi raw materials

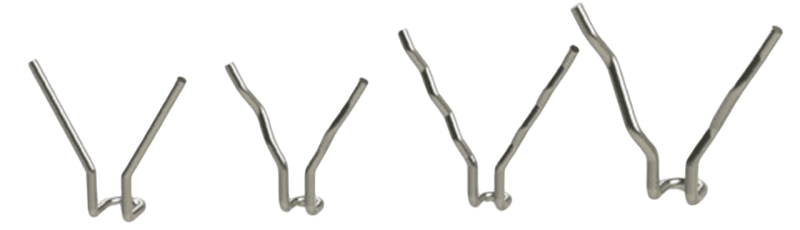

Rod Anchors
We can manufacture anchors with using AISI 309, AISI 310, AISI 304, Inconel, 253 MA, 16MO3, and other high-alloy CRNi raw materials

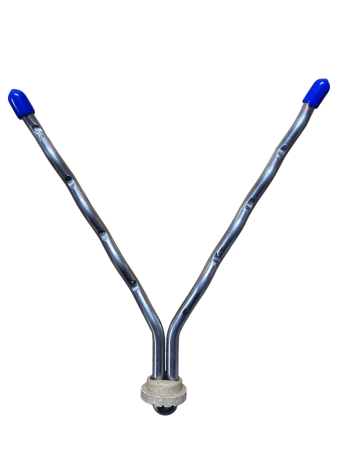

Stud Welding Rod Anchors
We can manufacture anchors with using AISI 309, AISI 310, AISI 304, Inconel, 253 MA, 16MO3, and other high-alloy CRNi raw materials

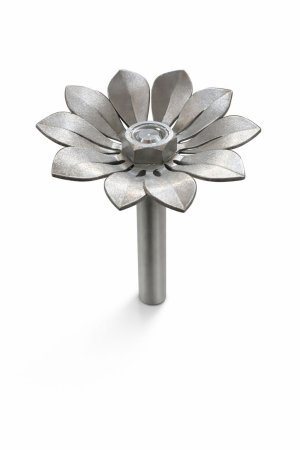

Special Anchors
We can manufacture anchors with using AISI 309, AISI 310, AISI 304, Inconel, 253 MA, 16MO3, and other high-alloy CRNi raw materials

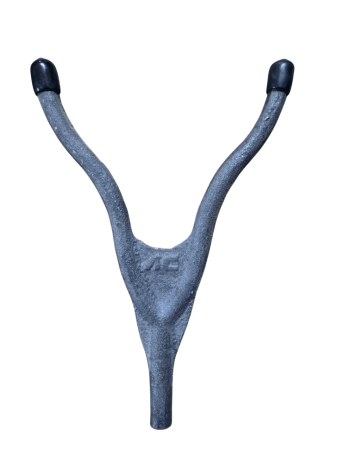

Casting Anchor
We can manufacture anchors with using AISI 309, AISI 310, AISI 304, Inconel, 253 MA, 16MO3, and other high-alloy CRNi raw materials

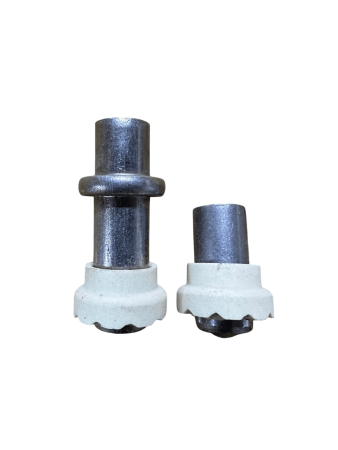

Boiler Pin
We can manufacture anchors with using AISI 309, AISI 310, AISI 304, Inconel, 253 MA, 16MO3, and other high-alloy CRNi raw materials

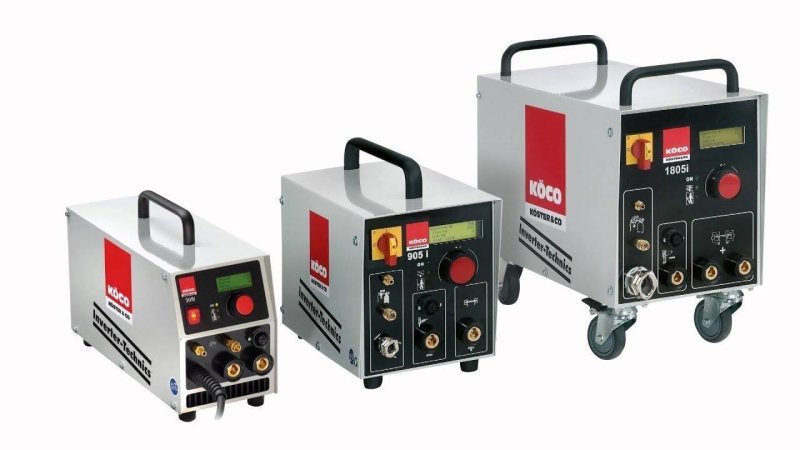

Stud Welding Machine
Stud Welding Machine
Stud Welding Machine

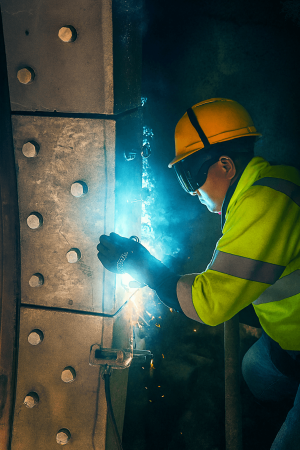

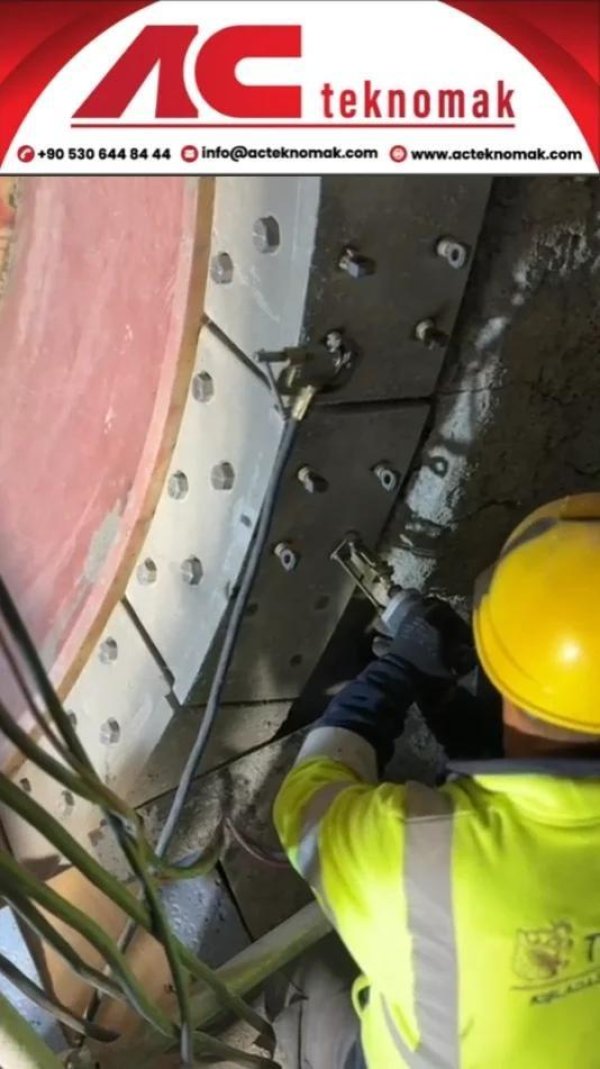

Stud Welding Field Service
Stud Welding Field Service
Welding services on-site with an experienced welding team and special welding machines.
Induction Heater
AC Heater Mobil Induction Heater
- Medium Frequency Induction Heating Technology
- Portable
- Mounting and dismounting of tight fit parts.
For bearings, couplings, gears, pulleys, etc.
| Heat treatments coating, stress relieving and preheating. Welding heat treatments tank, boiler manufacturing heating: Mold heating, shipyards, galvanized coating Pipeline heating: Heating and opening of pipelines Bearings, gears, and couplings: Tight fit mounting- dismounting | HEATING TYPE Medium Frequency Induction Heating
| CAPACITY
| ||
| HEATING ALTERNATIVES 1. Heating with a setted program 2. Heating with setted time 3. heating with setted temprature | |||
| High Efficiency with medium frequancy induction heating | ||||
| With PID machine adjusts the power balance according to the heating piece dimensions. | ||||
| Machine heating capacity can be adjust with in 0-95 % | ||||
| High Heat Traceability Ability to see any point of the heated part with the 3-channel thermocouple input. | ||||
| Heating coil can be water cool as well | ||||
| Alarms, warnings and Trouble Shouts can be visible on machine screen | ||||
| Touch Screen provides high clarity of vision in daylight and in the dark. | ||||
| • Working with Target Temp: Induction heater heat the piece to setted temprature | ||||
| • Working with Adjusted Time: Induction heater heat the piece to setted time | ||||
| • Working with a heating Program: Induction heater heat the piece with your specific heating program | ||||
| • High Current Protection: Device protect itself with high and unballanced current | ||||
| • High Temp Protection of Induction Generator: The temperature of the generator reaches 60°C or higher, turns itself off. | ||||
| • Running Time : Running time visible on the screen. | ||||
| • Heating Process Diagram: Heating process traceable from Diagram page of the screen. | ||||
The touchscreen provides high resolution and clear vision in daylight and darkness.
Warnings and malfunctions are displayed on the machine screen along with their solutions.
The heating cable can be air-cooled or water-cooled, depending on the requirement.
With the Multi-Output Temperature Probe, multiple metal workpieces can be tested with a single power source, and the system can be designed and equipped according to the user's actual needs, such as with 3 output channels.
The machine power can be adjusted as desired between 95% and 0%.
With PID technology, the machine automatically adjusts the power balance according to its needs.
High Energy Efficiency
%90
The machine adjusts itself according to its needs.
Multiple Heating Mode Selection
- Multi-program heating mode
Constant power heating mode
Constant temperature heating mode
  | ||||||||||
| MODEL | POWER | CAPACITY | INPUT | OUTPUT | HEATING COIL DIAMETER mm2 | HEATING COIL LENGTH mm | MACHINE WEIGTH AND DIMENSIONS KG/W/H/D mm | |||
| AC HEATER 5/220 V | 220V / 2 FAZ 50-60Hz | 4 kW | 20A | 60A | 6 | 15 - 20 m | 10 kg / 275x320x575 | |||
| AC HEATER 8/220 V | 220V / 2 FAZ 50-60Hz | 8 kW | 40A | 80A | 16 | 15 - 20 m | 10 kg / 275x320x575 | |||
| AC HEATER 15/400 V | 400V / 3 FAZ 50-60Hz | 15 kW | 22,5A | 40A | 16 | 20 - 30 m | 15 kg / 275x320x575 | |||
| AC HEATER 30/400 V | 400V / 3 FAZ 50-60Hz | 30 kW | 45A | 75A | 16 | 30 - 50 m | 45 kg / 600x700x600 | |||
| AC HEATER 40/400 V | 400V / 3 FAZ 50-60Hz | 40 kW | 60A | 95A | 25 | 30 - 50 m | 45 kg / 600x700x600 | |||
| AC HEATER 50/400 V | 400V / 3 FAZ 50-60Hz | 50 kW | 75A | 110A | 25 | 30 - 50 m | 45 kg / 600x700x600 | |||
| AC HEATER 60/400 V | 400V / 3 FAZ 50-60Hz | 60 kW | 90A | 120A | 35 | 30 - 50 m | 45 kg / 600x700x600 | |||
| AC HEATER 80/400 V | 400V / 3 FAZ 50-60Hz | 80 kW | 120A | 180A | 35 | 30 - 50 m | 85 kg / 600x950x600 | |||
| AC HEATER 100/400 V | 400V / 3 FAZ 50-60Hz | 100 kW | 140A | 200A | 50 | 30 - 50 m | 85 kg / 600x950x600 | |||
| AC HEATER 120/400 V | 400V / 3 FAZ 50-60Hz | 120 kW | 160A | 230A | 70 | 30 - 50 m | 145 kg / 750x105x750 | |||
| AC HEATER 160/400 V | 400V / 3 FAZ 50-60Hz | 160 kW | 195A | 270A | 110 | 30 - 50 m | 145 kg / 750x105x750 | |||

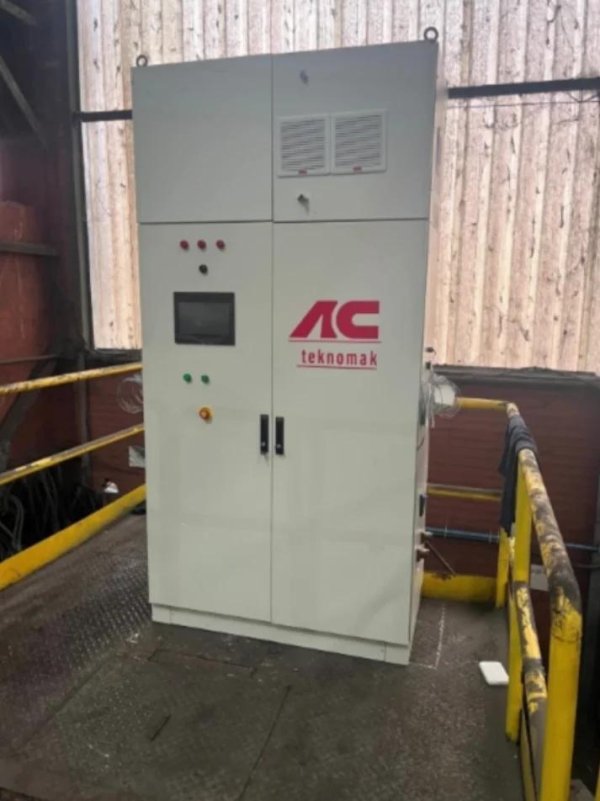

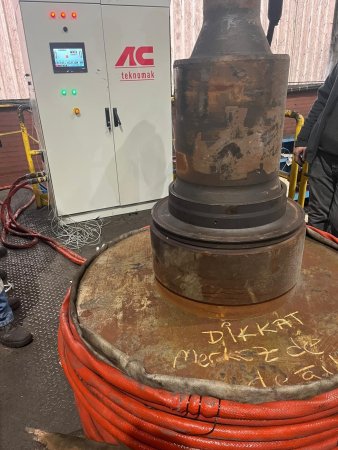

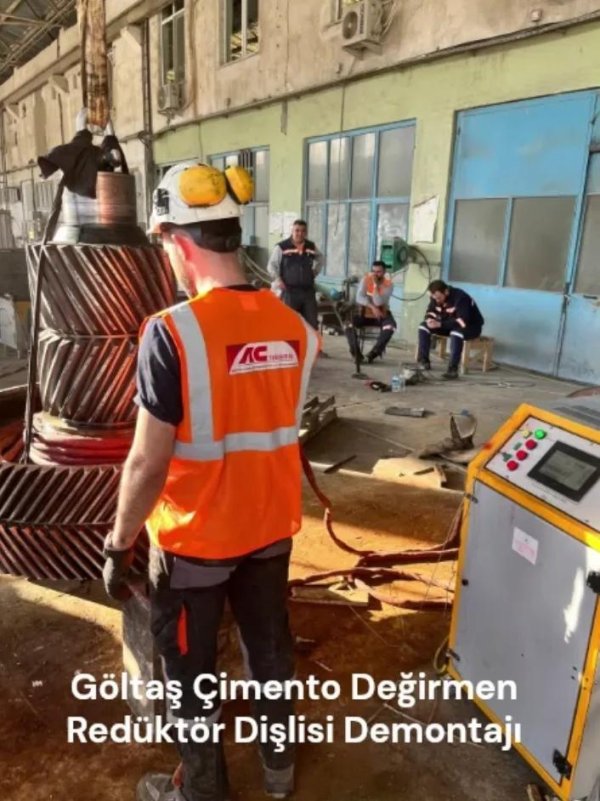

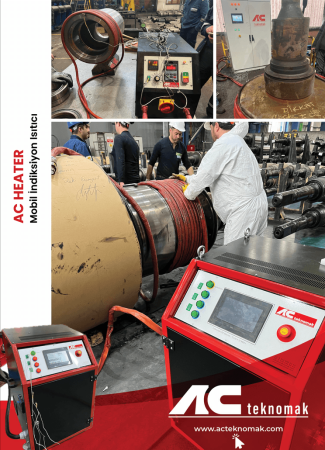

Induction Heater Field Service

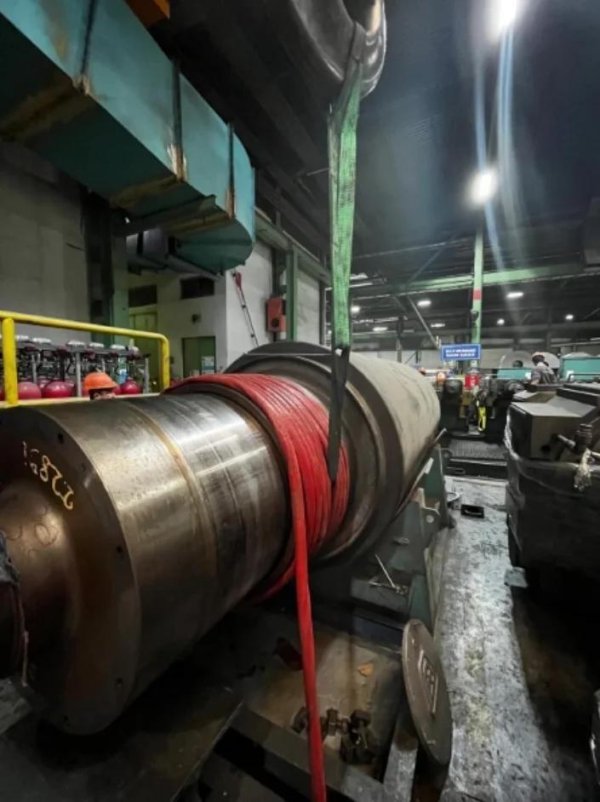

Mobile Induction Heater Field Service
On-site heating service with our experienced team. Disassembly and assembly of tight-fitting parts.

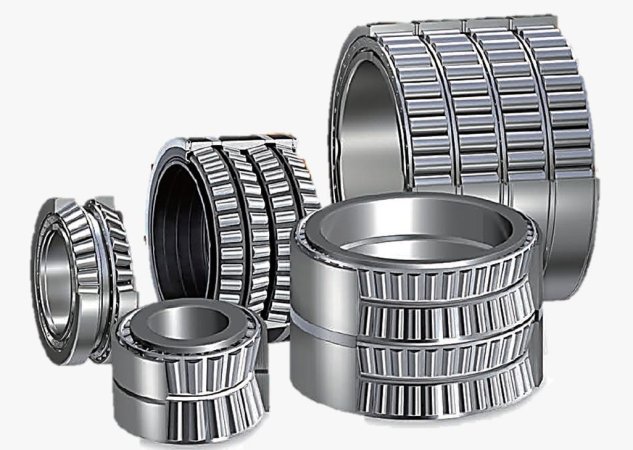

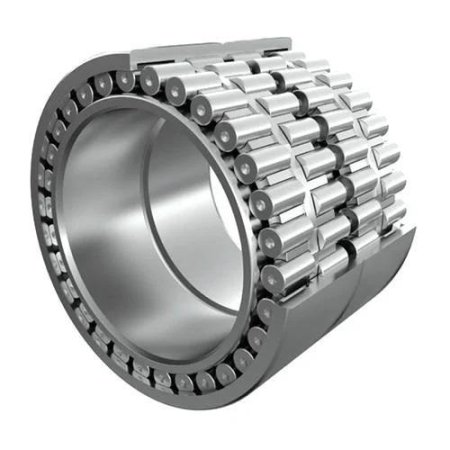

Bearing
Bearing

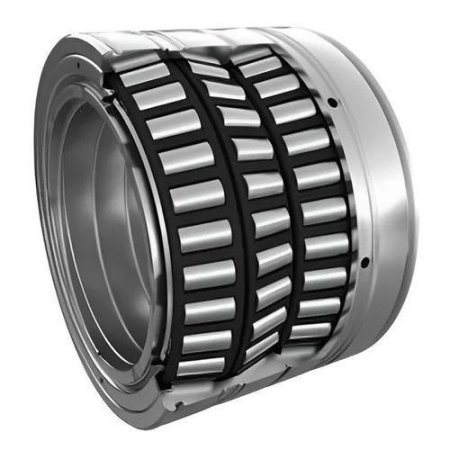

Special and Large Size Bearing Supply for Rolling Mill and Cement Industries

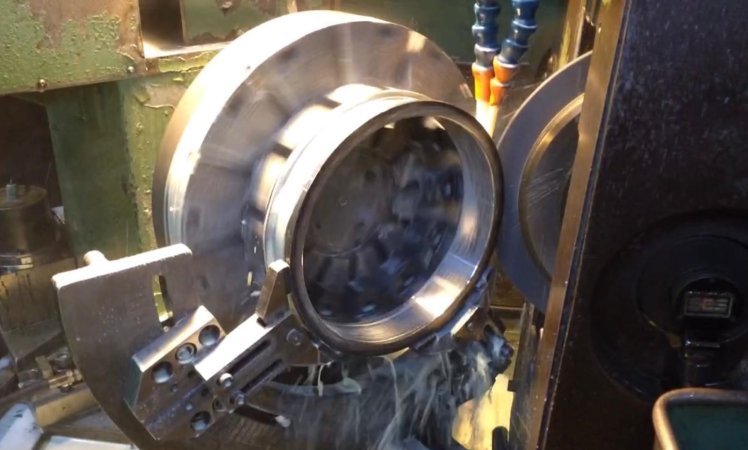

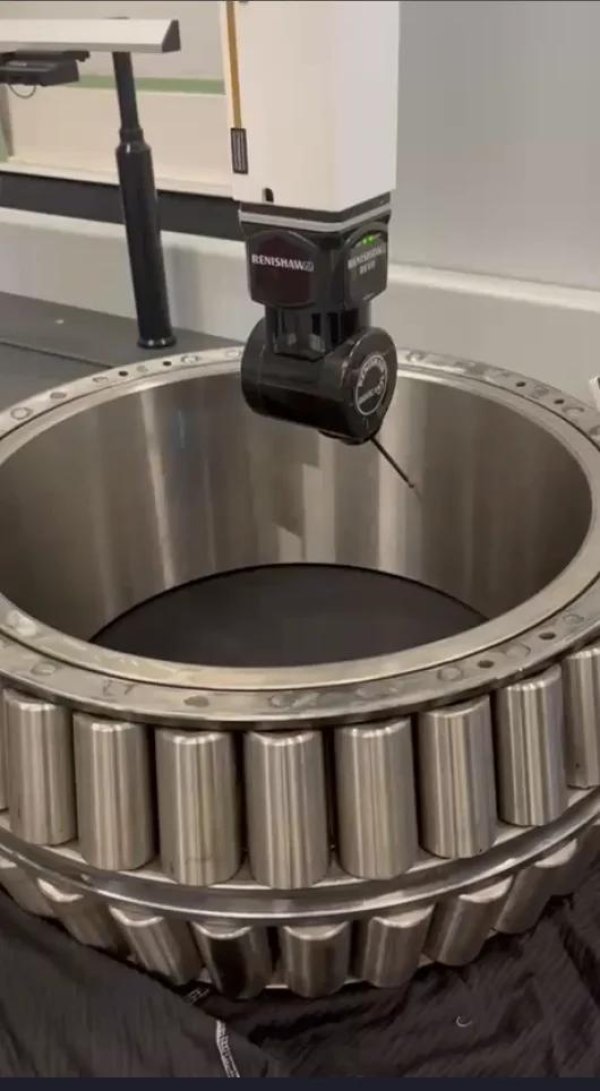

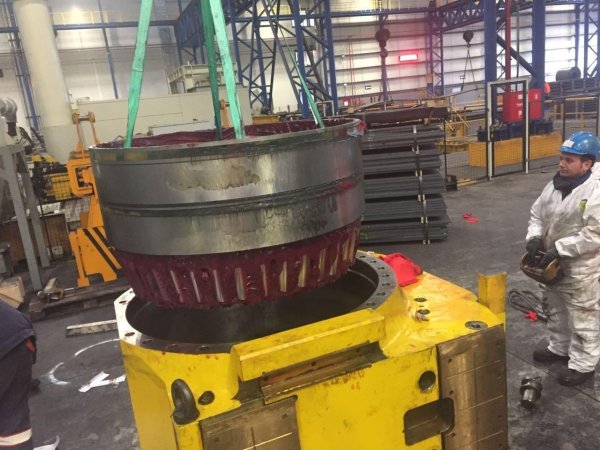

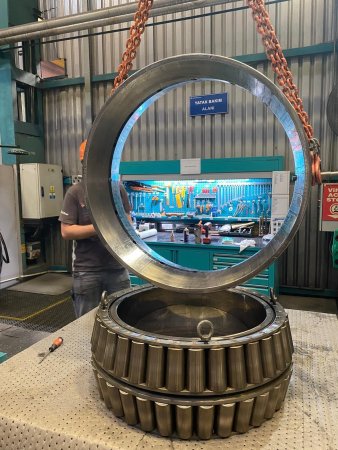

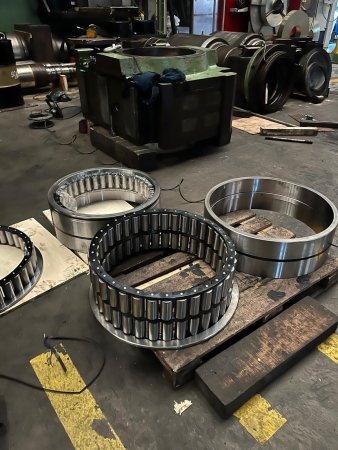

Bearing Maintenance, Remanufacturing, Refurbishment, and Bearing Technical Training
Bearing Maintenance, Remanufacturing, Reconditioning and Bearing Technical Trainging
• Technical Training
• Bearing Maintenance and Remanufacturing
• Bearing Damage Analysis and Solution

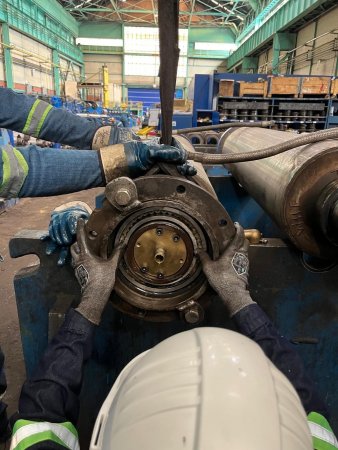

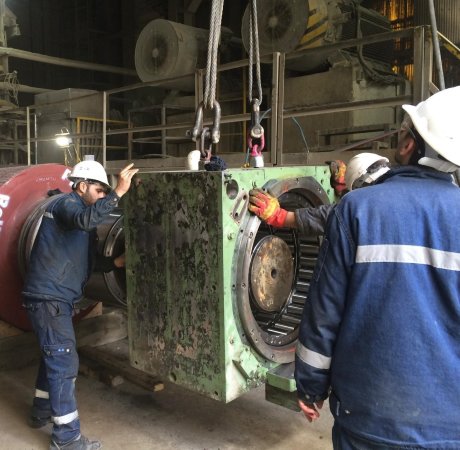

Rolling Mill Roll Neck, Chock Remanufacturing and Repair
Rolling Mill Roll Neck and Chock Repair and Remanufacturing.
Rolling Mill Drive Shaft Remanufacturing and Repair
Rolling Mill Drive Shaft Remanufacturing and Repair
• Cross and Bearing (U-Joint) Repair and Remanufacturing.
• Spindle Shaft,Yoke, Flange Repair and Remanufacturing.
AI-Powered Sensors

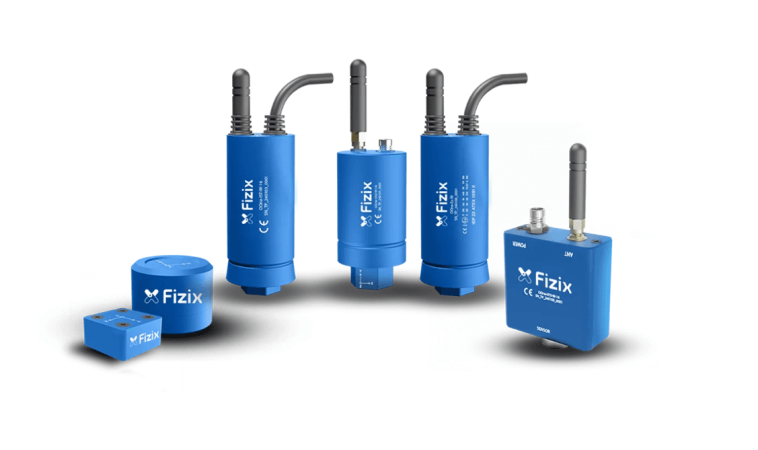

Fizix AI Based Online Machinery Health Monitorin Systems
AC Teknomak aims to increase the efficiency of businesses with its Fizix Online Machine Health Monitoring Systems, which offer innovative solutions for preventive maintenance and fault detection in industrial equipment. These sensors monitor vibration, temperature, and performance data in machines in real-time, providing early fault warnings.
Thanks to Fizix sensor systems, problems that may occur in bearings, motors, gearboxes, and rotating equipment are detected before production stops, preventing unplanned downtime. AC Teknomak integrates this technology into its customers' systems, offering digital twin, online condition monitoring, predictive maintenance, and data analytics support.
Our company develops intelligent solutions that digitize maintenance processes, increase energy efficiency, and extend equipment lifespan with Fizix sensors, which operate reliably in heavy industrial environments.
Daha Fazla Bilgi İçin Tıklayın.
Customized Projects and Engineering Solutions
Customized Projects and Engineering Solutions
Project-based equipment and system design and manufacturing.
